Description

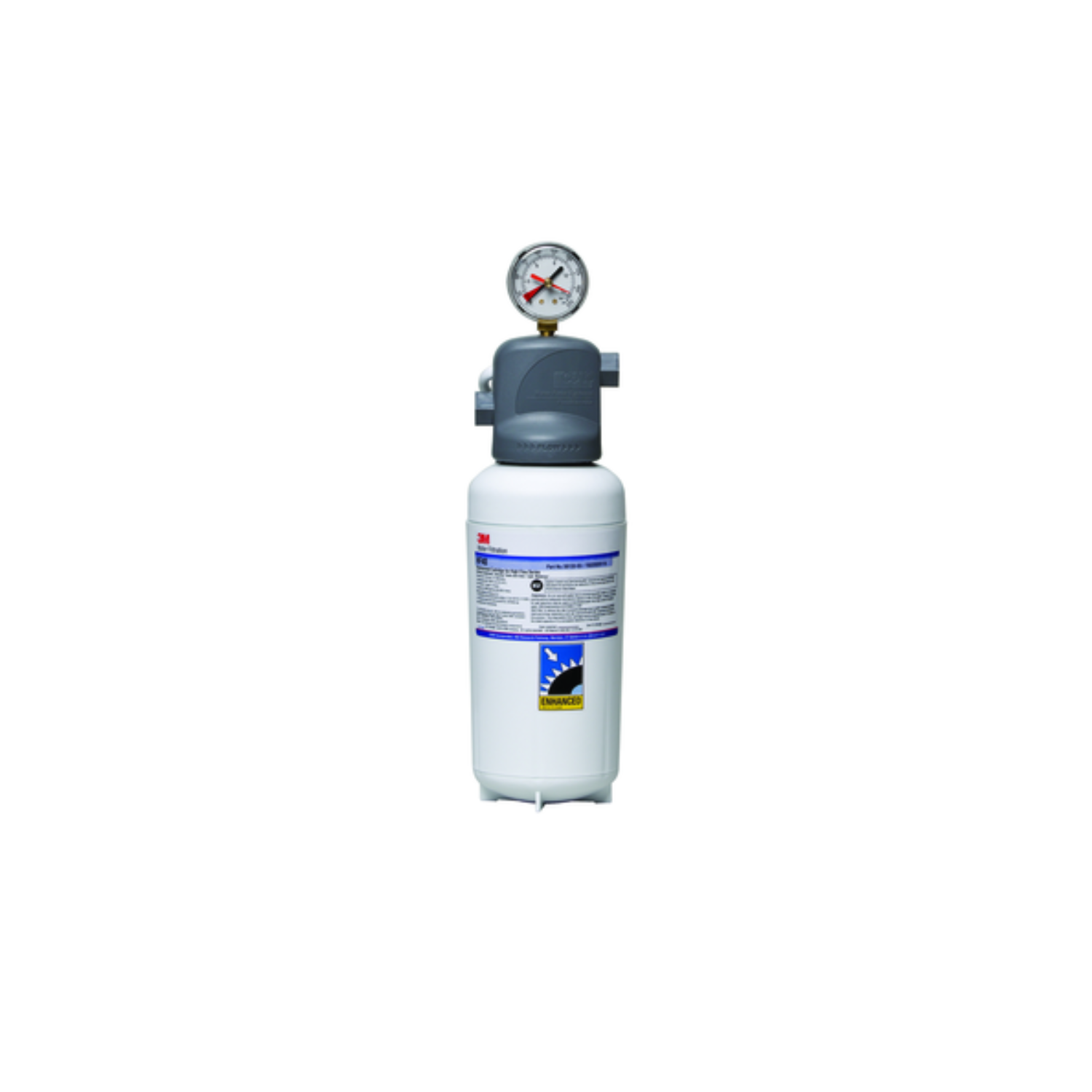

3M BEV140 Water Filtration System – Premium Water Quality for Cold Beverages
Key Features:
Optimized for Cold Beverages – Delivers high-quality water for sodas, iced teas, and more
Advanced IMPACT Filtration – Combines carbon and membrane layers to reduce chlorine, cysts, particulates, and bacteria
25,000 Gallon Capacity – Long-lasting cartridge supports heavy beverage demand
Fast Flow Rate – Up to 2.1 GPM (7.9 LPM) for continuous service
Built-in Bacteria Inhibitor – Helps reduce media fouling
Tool-Free Cartridge Change-Out – SQC design enables clean, quarter-turn replacements
Built-In Shut-Off Valve – Allows for easy service without shutting off main line
Compact Valve-in-Head Design – Simplifies installation and cartridge change
NSF 42 & 53 Certified – Materials comply with FDA CFR-21 for food contact
Specifications:
Application: Cold beverage systems
Flow Rate: Up to 2.1 GPM (7.9 LPM)
Capacity: 25,000 gallons (94,635 liters)
Cartridge Type: HF40 (O-ring seal, bacteriostatic carbon block)
Connection Type: 3/8” FNPT horizontal inlet/outlet
Operating Pressure: Max 125 psi (862 kPa)
Operating Temperature: Max 100°F (37.8°C)
Cartridge Change Frequency: Every 12 months or at capacity
Shipping Weight: 8.9 lbs (4.0 kg)
Operating Weight: 6 lbs (2.7 kg)
Includes: Head assembly, pressure gauge, bracket, filter cartridge, and shut-off valve
Installation Notes:
For use on cold water lines only
Must comply with local plumbing codes
Avoid installing in freezing or high-pressure environments (install pressure-limiting valve if over 80 psi)
Replace cartridge annually or when flow rate decreases noticeably
